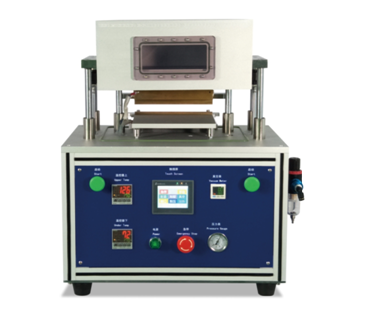

It is mainly used for vacuum heat sealing of flexible packaging batteries; this machine can automatically complete the vacuum heat sealing of battery aluminum-plastic film shells by precisely controlling the vacuum chamber and pneumatic heat sealing components.
The maximum power adopts a 300W heating tube, and the power consumption when heating is about 0.6KW
Head temperature Normal temperature ~ 250 ℃, adjustable temperature
Temperature control accuracy ±2℃
Edge width 2～5mm
Parallelism of the head Use triple carbon-free copy paper, the pressure of the head is 0.6MPa, and the seal is uniform when the temperature is 200°C
Heat sealing pressure 0~7Kg/cm2 adjustable
Heat sealing time adjustable from 0 to 99 seconds
Vacuum degree adjustable within -95Kpa~0
Head length 200mm long
Power supply AC220V/50Hz
Air source 0.5～0.7Mpa
Dimensions Working part: 470mm*485mm*435mm
Equipment weight about 50Kg
This machine consists of the following parts
1. Mechanical part: feeding tray mechanism, vacuum chamber mechanism, piercing mechanism, driving mechanism, guiding mechanism, base mechanism, electric box control part, etc.
2. Electrical parts: pneumatic components, solid state relays, solenoid valves, photoelectric switches, etc.
